Instructions

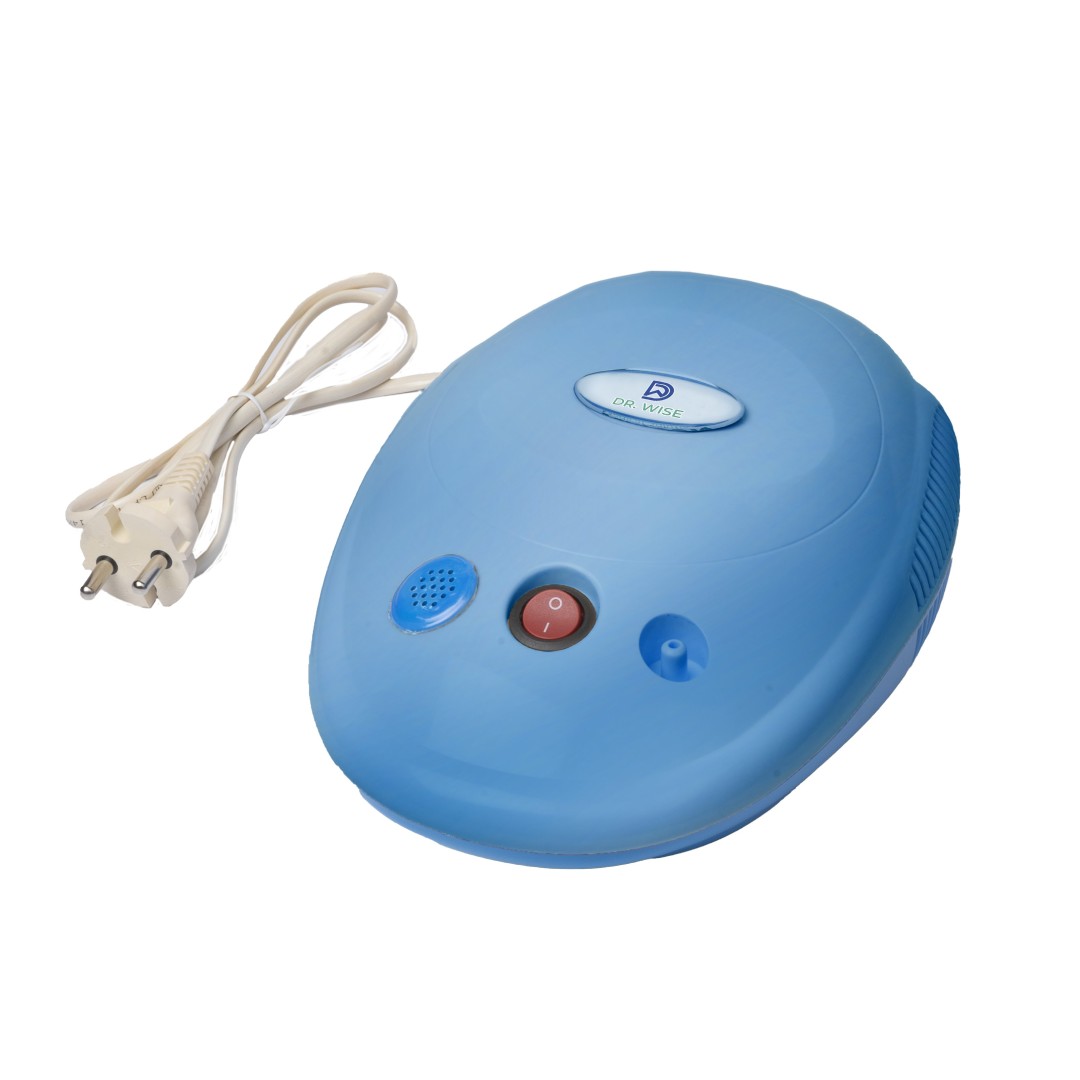

This Compressor Nebulizer is a compact medical device designed to efficiently deliver physician prescribed medication to the bronchial lung passages.
This product is developed for the successful treatment of asthma, allergies and other respiratory disorders. It creates a stream of air that travels through a clear tube to the nebulizer. When air enters the nebulizer, it will convert the prescribed medication into aerosol mist for easy inhalation.
Your Compressor Nebulizer should be used under the supervision of a licensed physician and/or a respiratory therapist. We encourage you to thoroughly read this manual before use.
Cleaning
It is recommended that the nebulizer, mouthpiece and mask are thoroughly cleaned with hot water after each use and cleaned with a mild detergent after the last treatment of the day. If your physician or respiratory therapist specifies a different cleaning procedure, follow their instructions.
Cautions:
1. Do not immerse the unit of water, it may damage the unit.
2. Disconnect the unit from the electrical outlet before cleaning.
3. Clean all necessary parts after each use as instructed in this guidebook.
Rinsing (after each treatment)
1. Disconnect the air tube, nebulizer, mouthpiece and mask.
2. Gently twist the nebulizer to open it.
3. Rinse the nebulizer, mouthpiece and mask with water.
4. Dry them with clean soft towel or let it air dry.
5. Reassemble the nebulizer when completely dry and put these parts in a dry sealed container.
Disinfection:
Please follow the following steps to disinfect your nebulizer unless otherwise specified by your physician. It is suggested that the unit is disinfected after the last treatment of the day.
1. Use one part white vinegar with three parts distilled water. Make sure mixed solution is enough to submerge the nebulizer, mouthpiece and mask.
2. Complete rinsing parts 1-3.
3. Wash nebulizer, mouthpiece and mask in warm water and mild detergent. Then wash them in clean water.
Cleaning the compressor:
1. Wipe daily with a damp cloth.
2. Do not use any powdered cleaner or soap pad, which may damage the finish.
Filter Change:
1. Do not use cotton or any other material. Do not wash or clean the filter. Only use filters supplied by the company. Do not operate without a filter.
2. Change the filter every 30 days or when the filter turns grey.
3. Changing procedure:
a. Remove the filter cover.
b. Replace the used filter with a new one.
c. Replae the filter cover.
Important Safeguards
Note: Read all instructions carefully before use.
The following basic precautions are needed when using an electrical product:
Caution: Failure to read and observe all precautions could result in presonal injury or equipment damage.
This unit is not suitable for use in anaesthetic breathing systems.
This unit is not suitable in suspension or high viscosity form. In such cases information should be sought from the drug supplier.
Product Cautions:
1. Keep the unit away from water to avoid electrical shock. Do not immerse the power cord to the unit in liquid. Do not use while bathing. Do not reach for a unit that has fallen into water. Immediately unplug the unit.
2. Never operate the unit if it has any damaged parts (including power cord), has been dropped or submersed in water. Promptly send it to a service center for examination and repair.
3. The unit should not be used where flammable gas, oxygen or aerosol spray are being used.
4. Disconnect the unit from the electical outlet before cleaning.
5. Do not use other attachments unless recommended by manufacturer.
Operation Cautions:
1. Connect this product to an appropriate voltage outelt for the model.
2. Do not run this product unattended.
3. Never operate if this unit has a damaged cord or plug, has been dropped or in any way into water. If it does not work properly, return it to a service center for repair.
4. If any abnormality occurs, discontinue use immediately until the unit has been examined and repaired.
5. Always unplug the product immediately after use.
6. Never block the air openings of the main unit or place it where the air openings may be obstructed.
